Aerotech J315R-14A (P2)
Aerotech J315R-14A (P2)
Aerotech J315R-14A (P2)
wishlist Add to wish list

Aerotech J315R-14A (P2)

Shipping time:
approx. 3-4 days approx. 3-4 days (abroad may vary)
Stock: 2 pieces
: GER: 21 years + permit (private: §27 / business: §7 SprengG) or Export: According to regulations of the destination country
170,00 EUR

incl. 19% tax excl. Shipping costs

Ask about product
Description

Description:

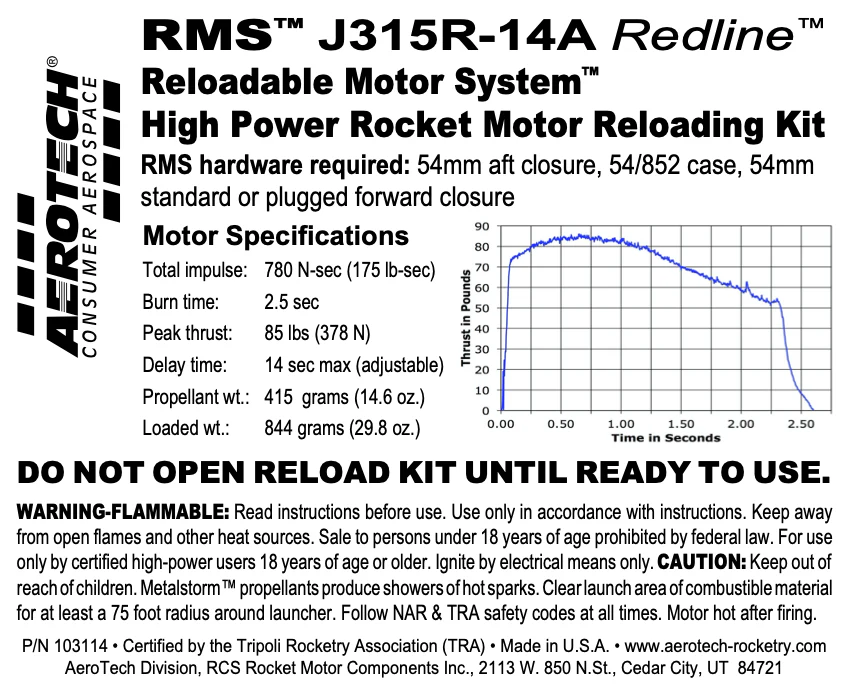

Aerotech J315R-14A is a Reloadable Motor System (RMS) that requires a 54/852 casing. The Reloadable Motor System (RMS) requires you to assemble the motor according to the enclosed instructions. You will need to purchase the 54/852 casing separately and it can be re-used several times.


Technical Data:


  • Diameter: 54 mm
  • Case (Casing): 54/852 Case
  • Delay: 14 sec.
  • Burn time: 2.4 sec.
  • Total pulse: 763.3 Ns
  • Length: 230 mm
  • Max. Thrust: 376.0 N
  • NEM: 438.0 g
  • Total weight: 851.0 g
